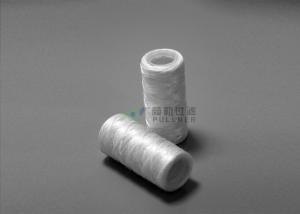

PP Cotton Glass Fiber Sprial Wound Filters String Wound Filter Cartridge
General Description
PP String Wound Filter Cartridge can be used in acid and alkali, chemical solution and other non-organic solvent; Suggest Max. operating temperature ≤60℃.
Cotton yarn fiber filter with Stainless steel support core, can be used in organic solvents, oils, water, alkaline solution, pharmaceuticals, beverages, etc.
Glass fiber has a wide range of chemical compatibility, can be applied to filter special chemicals and corrosive liquid.
Features and Benefits
* PP support has good heat resistance, suitable PH 1-13;
* Suitable for high solid content and high viscosity material liquid solid-liquid separation;
* Stainless steel support has good heat resistance, maximum operating temperature 120 ℃;
* Choice different materials configured according to the process conditions to meet the needs of a variety of liquid filtration.
Applications
* Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.
* Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.
* Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc.
Performance Specifications
|
OD (Outside Diameter)
|
60-63mm,115mm; (Customized on request)
|
|
ID (Inside Diameter)
|
28mm,30mm
|
|
Length
|
5 ", 10 ", 20 ", 30 ", 40 "
|
|
Micron
|
1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um.
|
|
Filter Medium
|
Polypropylene(PP), Cotton, Glass Fiber
|
|
Center Core
|
Polypropylene(PP), Stainless steel 304/316L
|
